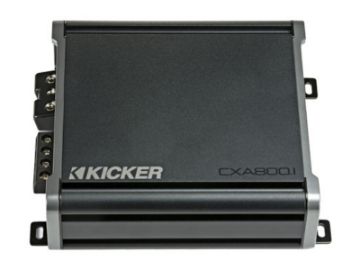

This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.
| Specifications |
| Subsonic Filter: |
25Hz @24dB/octave |
| KickEQ™ Boost |
Variable 0-6dB @40Hz |
| Active Crossover: |
Variable Lo-pass 50Hz–200Hz, 12dB/octave |
| Signal-to-Noise Ratio: |
>95dB, a-weighted, re: rated power |
| Input Sensitivity: |
125mV–5V (Low Level) , 1V–40V (High Level) |
| Frequency Response (Hz): |
25-200, +0/-1dB |
| Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) |
8-1/8, 20.6 |

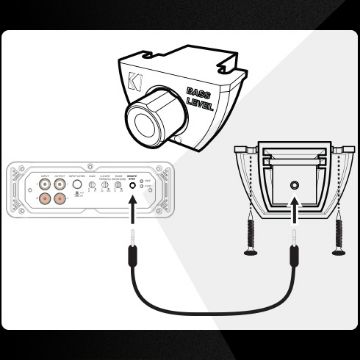

| CXRC Remote Bass Capable (sold sep.) |
yes |
| Power (watts/ch) 1 Ohm |
800x1 |
| Power (watts/ch) 2 Ohm |
600x1 |
| Power (watts/ch) 4 Ohm |
300x1 |
| MODEL |
CXA800.1 |
